Divizor cu 16

/*
Un exemplu de divizor cu 16 care folosește metoda flip-flop-urilor în cascadă
*/

module clock_divider(
  input clk,
  input reset,
  output reg clk_div2,
  output reg clk_div4,
  output reg clk_div8,
  output reg clk_div16
);

  // Initialize on reset
  always @(posedge clk or posedge reset) begin
    if (reset)
      clk_div2 <= 1'b0;
    else
      clk_div2 <= ~clk_div2;
  end

  always @(posedge clk_div2 or posedge reset) begin
    if (reset)
      clk_div4 <= 1'b0;
    else
      clk_div4 <= ~clk_div4;
  end

  always @(posedge clk_div4 or posedge reset) begin
    if (reset)
      clk_div8 <= 1'b0;
    else
      clk_div8 <= ~clk_div8;
  end

  always @(posedge clk_div8 or posedge reset) begin
    if (reset)
      clk_div16 <= 1'b0;
    else
      clk_div16 <= ~clk_div16;
  end

endmodule

Și un testbench:

`timescale 1ns/1ps

module clock_divider_tb;
  reg clk;
  reg reset;
  wire clk_div2, clk_div4, clk_div8, clk_div16;

  // Instantiate the design
  clock_divider dut (
    .clk(clk),
    .reset(reset),
    .clk_div2(clk_div2),
    .clk_div4(clk_div4),
    .clk_div8(clk_div8),
    .clk_div16(clk_div16)
  );

  // Clock generation (10ns period = 100MHz)
  initial begin
    clk = 0;
    forever #5 clk = ~clk;
  end

  // Test sequence
  initial begin
    $dumpfile("clock_divider.vcd");
    $dumpvars(0, clock_divider_tb);

    reset = 1;
    #20 reset = 0;

    // Run for enough cycles to see all divided clocks
    #1000;

    $display("Test completed");
    $finish;
  end

  // Monitor outputs
  initial begin
    $monitor("Time=%0t clk=%b div2=%b div4=%b div8=%b div16=%b",
             $time, clk, clk_div2, clk_div4, clk_div8, clk_div16);
  end
endmodule

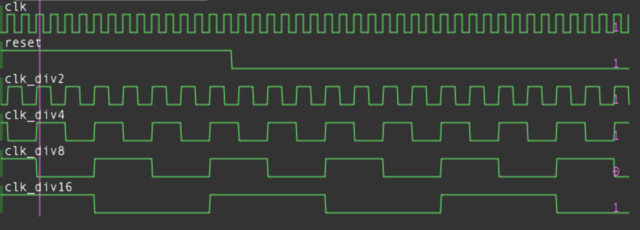

Divizor cu 16, verilog
